Enjoy happy life

Four-wheeled recreational vehicle

All-weather long-endurance
smart and safe
amphibious vehicle

"6" Advantage

Riding the "Tide School" amphibious recreational vehicle activities to relax the tension and nerves caused by work，In order to achieve the purpose of pleasure and relaxation， Will greatly meet the entertainment needs of tourists，Let the majority of tourists enjoy an extraordinary travel experience.

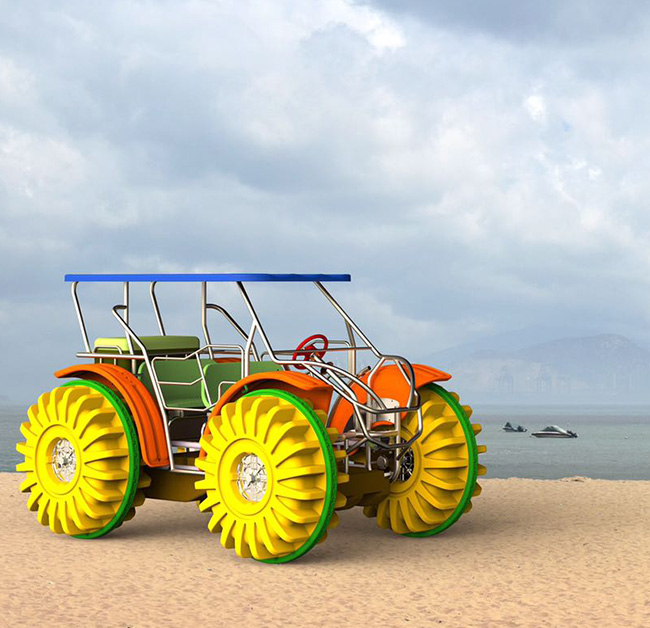

Unique style

— Grandiose•See the love —

Unique appearance, It's refreshing
The sun is spacious and transparentDriving space

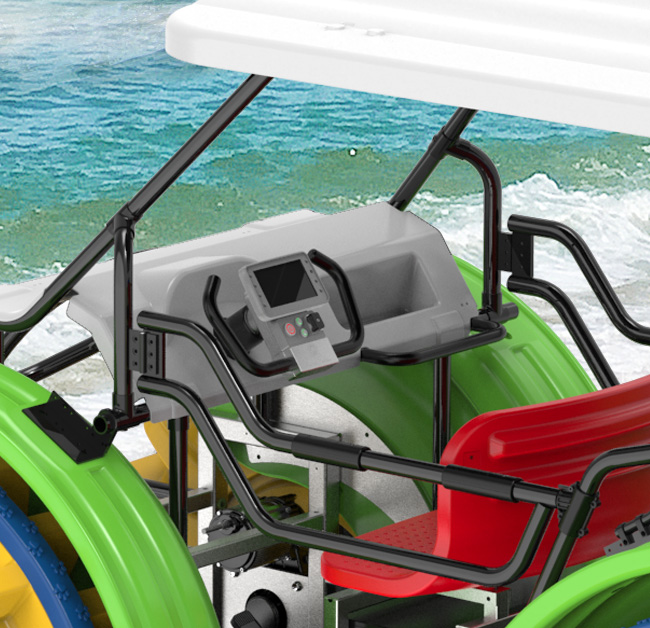

7 inch full LCD TFT meter

Intelligence is better than wisdom

— Cloud technology•Intelligent interconnection —

Intelligent driving assistance system，Make driving More relaxed
ECU intelligent central controllerKnow the real-time status of the vehicle
Real-time location etc.Information sent to the server
Remote lock car/unlock And Safety alert function

The safety technology is superb and first-class

— Small range•Light escort —

All round security protection，Safe travel at any time
High strength aluminum alloy frame, Fully absorb impact force
Land、Water surface detection and recognition system
Intelligent assisted driving、Front and rear radar sensing

Enjoy a high level of power

— Output efficiently•Immediate effect —

High efficiency, super high power and strong output，Easily adapt to various road conditions

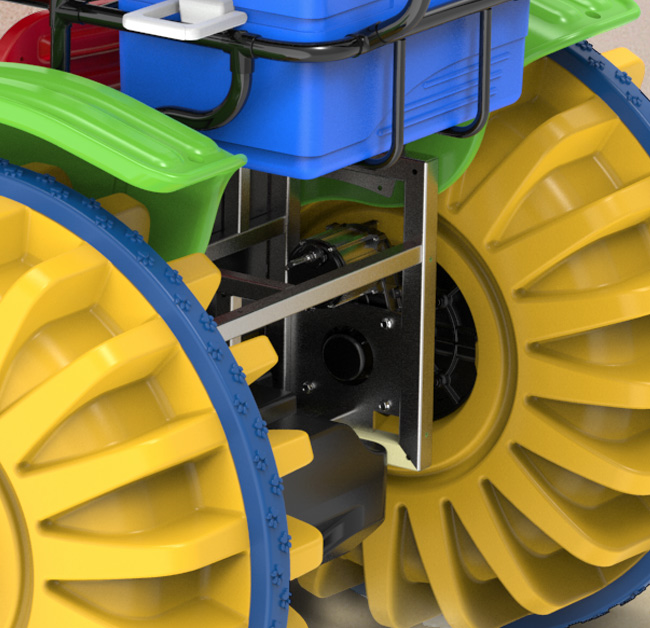

Efficiency of electric drive assembly, All time 4WD，System efficiency up to 90%
Maximum power 10KW，Maximum torque 4000N. M

Continuous sailing is better than others

— Super long standby•Safe and reliable —

High safety vehicle of specified level for GuoXuanLithium iron phosphate battery
Super long standby，Amphibious and amphibious, have endless fun
Charge quickly for 1 hour，Can achieve 80% increase in power
The battery is guaranteed for 3 years and the service life is more than 5 years

Adapt to a variety of environments without fear of challenges

— Multiple modes•Come and go freely —

Beach
water surface
wetlands
Snow ground

Technical parameters

Serial number	project name	Technical Information	unit	Serial number	project name	Technical Information	unit
1	Body size	355621702183	mm	20	Maximum ground clearance	251	mm
2	wheelbase	2082	mm	21	Braking mode	Motor braking
3	Wheelbase	1634	mm	22	Tire size (buoyancy tire)	1300	mm
4	Minimum ground clearance	251	mm	23	Transmission mode	gear drive
5	Vehicle quality (including battery)	400	kg	24	Transmission ratio	1:53
6	Rated load	200	kg	25	Nominal load economic speed driving time	3	h
7	Maximum load	250	kg	26	Driving status display mode	7 feet LCD
8	Number of passengers	2	indivual	27	Body chassis material	6061 aluminum alloy
9	Maximum resistance to wind and waves	5	progression	28	Material of fastener	304 stainless steel
10	Starting mode	Pedal start		29	Plastic parts material	PA6+15%GF PMMA
11	Driving mode	Rear wheel drive		30	Storage box（860465450）	95	L
12	Standard current balance voltage	60	V
13	Lithium Iron Phosphate Battery Capacity (2 group)	210(2 group)	Ah
14	Charging time (3.3KW charging machine)	4	h
15	Current limit	110	A
16	Maximum speed	overwater: 5（tire arm pull）	Km/h
17	Maximum speed	land:12	Km/h
18	Minimum turning radius	4	m
19	Maximum climbing angle	30	°

Fanslife

Fanslife is a comprehensive one-stop service company integrating R&D and sales of entertainment boats, sports boats, recreational vehicles, investment and development, operation and management of scenic spots, and large-scale event organization and planning. The company's newly developed three-wheeled and four-wheeled amphibious recreational vehicles have won national patents. They are unique in shape, intelligent and efficient, and are widely used in children's theme parks, beach scenic spots, lake tourist attractions, etc.
